….you find a bit left over in the box! To be more precise, you find a part you are not sure about.

The part in question is item ’20’ in the above diagram and is fitted to keyway in the screw for the apron slide. I’m not sure of its purpose (I will investigate this later) but The bad news was that it was in the box and no in the assembled machine!! So, looking at the diagram, I decided I needed to drop the rapid traverse unit (removing the 4 bolts) remove the two end caps of the apron and then I should be able to remove the screw to insert this ‘slider’.

Of course, the nut needed to be removed again (above) and then the screw would move out to the right. If you look at the photo below, you will see the screw withdrawn enough to allow the brass ‘spacer’ to be slid down along the bore to line up with the key fixed to the gear. The tang on the brass ‘spacer’ drops in by the gear so it will not slide out.

It was then a matter of aligning the screw and pushing it all back together. Evertything was bolted back up and it was operational again! Hopefully I will not be taking the apron apart again in the near future.

This section should have been described before the fitting of the apron slide!

I have trial fitted the traverse screw and nut together with the gear and bearings. The gear as below.

For some reason I forgot to photograph the completed gear and bearings. To fit you must fit the bearings into the gap before you try and fit the gear. This is because the casting has two shallow recesses and the whole assembly of bearing and gear is too tight to fit in one go. Once pushed together in the recess, they will stay in place whilst the screw is fitted to the apron. I’m still a little concerned about the play between the slot in the screw and the key which fits in the gear above. (you can just see the round fitting pin for the gear at the right hand end of the gear)

All that was now needed was to bolt up the rapid traverse unit – nothing tricky here, it just gets a little heavy when trying to line up all of the holes for the bolts. I quickly fitted the handles to make sure everything was working OK – and it was!

I have decided to carry on with the rebuild and I will worry about any wear to the traverse screw and nut later. (and there is a fair amount of wear since cleaning every thing thoroughly) It is not difficult to remove these items to replace them – on the assumption you can even get them!!

It is now starting to look like a complete F3!!

Having fitted the arpon/carriage, I was trying to remember how you locked the carriage vertically. It them dawned on me that it was via this threaded hole on the lower right! And the clamp ring? It was sitting on the bench!!

So I dismantled it all again and then fitted the clamp and bolt.

Still, it was a lot easier and quicker this time!

After a little deliberation I decided that to fit the carriage, I would use the column lower blanking plate as a retainer for the ‘scraper & spring’. This is the thin plate in the centre of the photo below. I then left the nut loose on the top of the main vertical screw and fitted the carriage with the jib loose.

It was then posssible to lift the carriage without worrying about the scraper falling out whilst I positioned the nut in line with the cap head retaining screw. It was a relatively straighforward proceedure. All that was then required was to engage the screw with the nut and then do some initial adjustments. Below is the point where, with decent light, yu can align the saddle with the nut. Once in view it is easily aligned to fit the socket head bolt.

Below is the assembled carriage.

I then put the vertical head on the machine – mainly to get it out of the way!!

When I was masking up I wan’t sure if the edge of the vertical head was painted. I can now see it was but I shall leave it as is.

The next stage will be to clean up the slide apron and then refit.

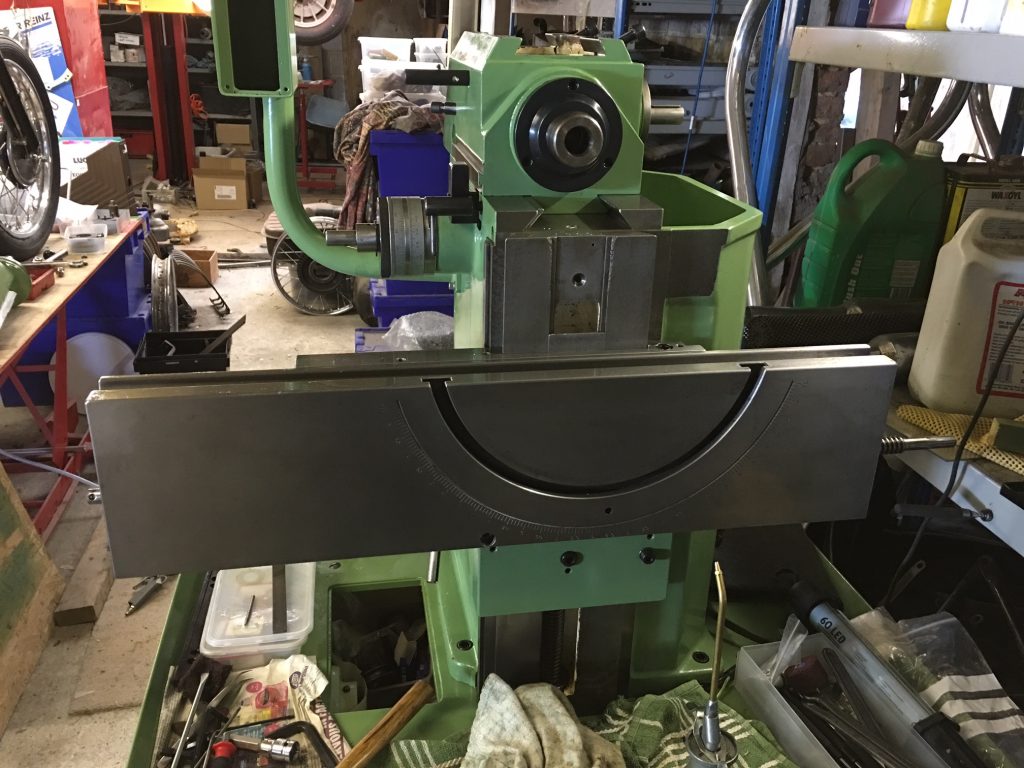

After fitting the horizontal head, I decided the main carriage should be fitted. What I did was to lift the carriage onto the column and steady with piece of wood as shown below. The jib adjuster was then fitted and adjusted to take up most play but still allow me to easily slide the carriage up and down.

The wood was just long enough to allow fitting of the piece shown by the serial number as below. It was then possible to lower the carriage 10mm to retain this strip and its corresponding spring. (I have no idea what this strip does. Is it a sort of wiper?

The problem that then occurs is that you cant fit the carriage over the z screw nut! Removing the jib then allows you to fit the carriage over the nut BUT you then lose the strip and spring. So – a little deliberation is called for and I will return with the answer!
